Sensys 8645 full overlay (ริมขอบ)
฿146.00

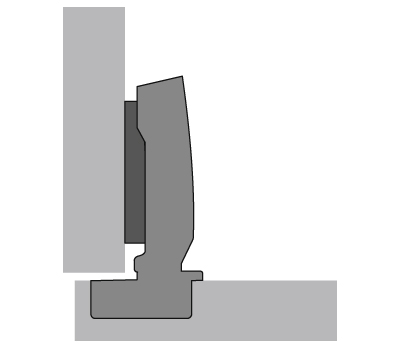

Hinge Sensys 8645, Base 12.5, overlay, TH 52, -, for screwing on
• Concealed hinge with clip on installation without integrated Silent System
• Quality classification under EN 15570, Level 3
• For door thickness of 15 – 24 mm
• Cup diameter 35 mm
• Cup depth 12.8 mm
• Integrated + 2 mm / – 2 mm overlay adjustment
• Integrated depth adjustment + 3 mm / – 2 mm
• Height adjustment at mounting plate
• Hinge arm material: steel, nickel plated
• Hinge cup material: steel, nickel plated

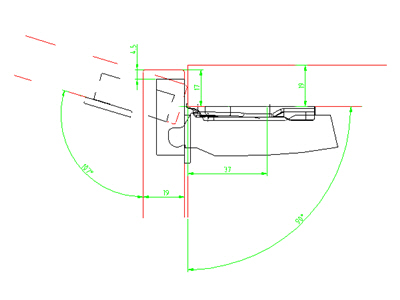

ข้อมูลเชิงเทคนิค

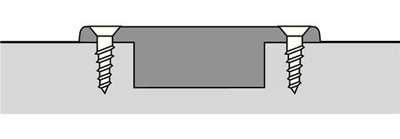

ข้อมูลสำหรับการติดตั้ง

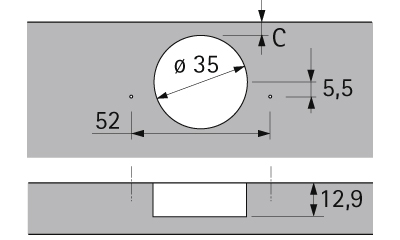

แบบเจาะเพื่อการติดตั้ง
มีสินค้าอยู่
ผลิตภัณฑ์มีอยู่แล้วในรายการที่ต้องการ
ค้นหารายการที่ต้องการ
ข้อมูลเพิ่มเติม
น้ำหนัก | 120 g |
---|
